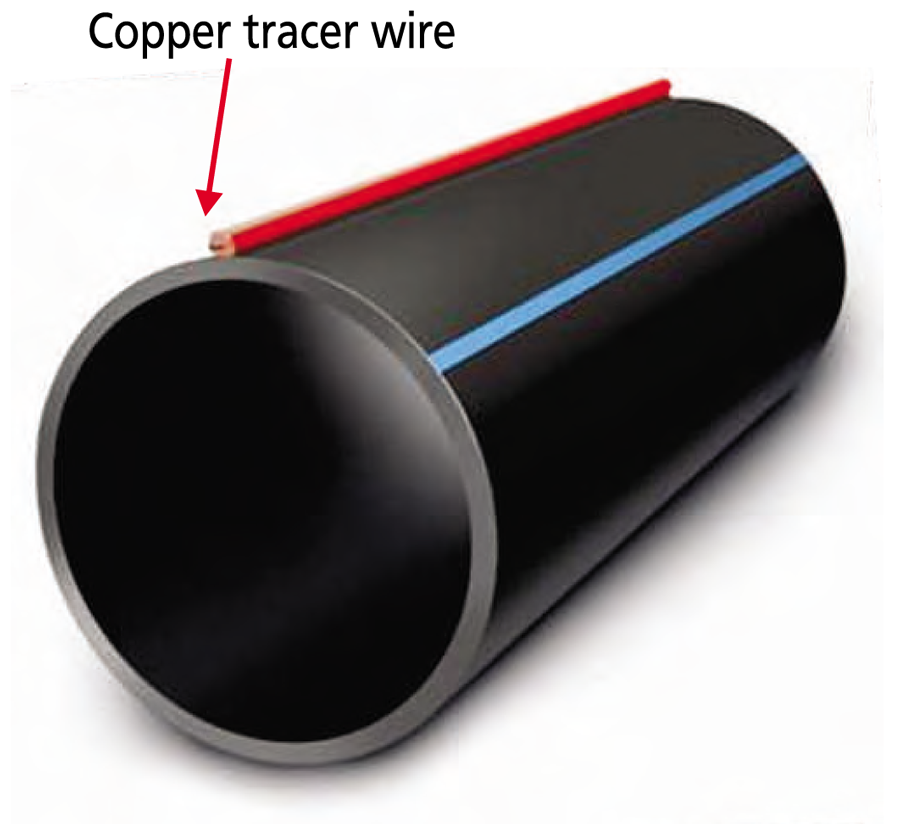

SmartTrack HDPE Pipes with Co-Extruded Copper Wire
These traceable HDPE Pipes are manufactured with co-extruded copper wire along the entire length make the underground pipeline network intelligent, offering following benefits
• Precise location of underground Pipeline network throughout the service life
• Accurate Depth measurement
• Capturing GPS coordinates
• Faster O&M and Expansion
| Size Range /Pressure Class | 20 mm to 1000 mm O.D. Pressure Class 2.5 Kg/cm2 to 25 Kg/cm2 |
| Raw Material Grade | Pe63, PE80, PE 100 (Natural & Coloured Pre compounded), MDPE 80 |
| Standards | IS 4984, IS 14333, ISO 4427, DIN 8074/75, EN12201, IS 14151 etc |
| Expected Life Span | >50 Years + |
| Special Options | PE Pipes with Copper tracer wire for Intelligent Piping networks (Traceability, Depth, GPS cordinates) |
| APPLICATIONS | |
|---|---|
| Municipalit ies/ Utilities/ Boards | Water Distribution, Pumping mains for water, House Service Connections, Force Mains for Sewer, Gravity mains for Sewer, Rehabillitation of Sewer lines, etc |
| Industry | In-Plant, Raw water intake & Construction piping systems (Plants - Cement, steel, fertilizer, Pulp & Paper, Automotive, Dairy etc), Chemical & Effluent disposal lines, Marine Intake & Outfall, Fire Fighting system, Fly Ash slurry, Dredging & Sand stowing etc |
| Irrigation | Rising Main & Distribution System, Lift Irrigation |
| Mining Industry | Leach lines, Coal Decant Systems, Mine Drainage, Slurry & Sludge Transportation, De-watering, Dust suppression, Sand Stowing |

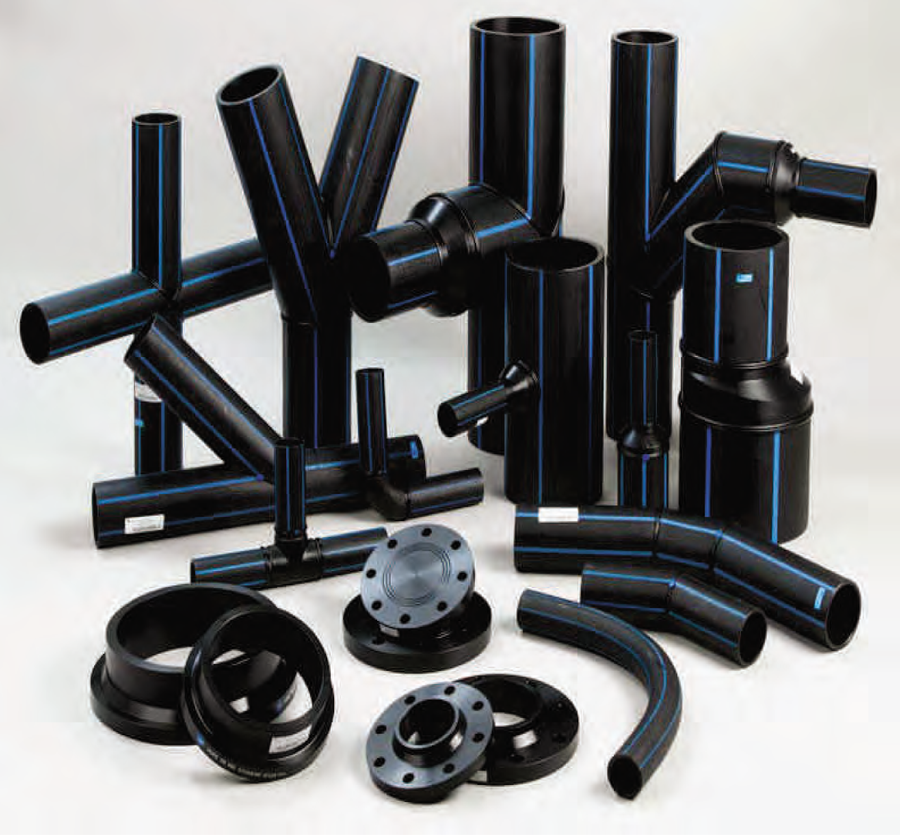

| PE FITTINGS | |
|---|---|
| Product Name | Injection Moulded & Fabricated |
| Range | Dia 32 mm to 1000mm |
| Moulded | Pipe End, Slip-on Flange, Reducer, Blind Flange, Up to 25 Kg/cm |
| Fabricated | Bend, Tee, Cross, Unequal Tee, Reducer Up to 25 Kg/cm |
| Standards | IS: 8008 (part Ito VII) |
| Application | Various types of fittings used to join & end connection of pipeline |

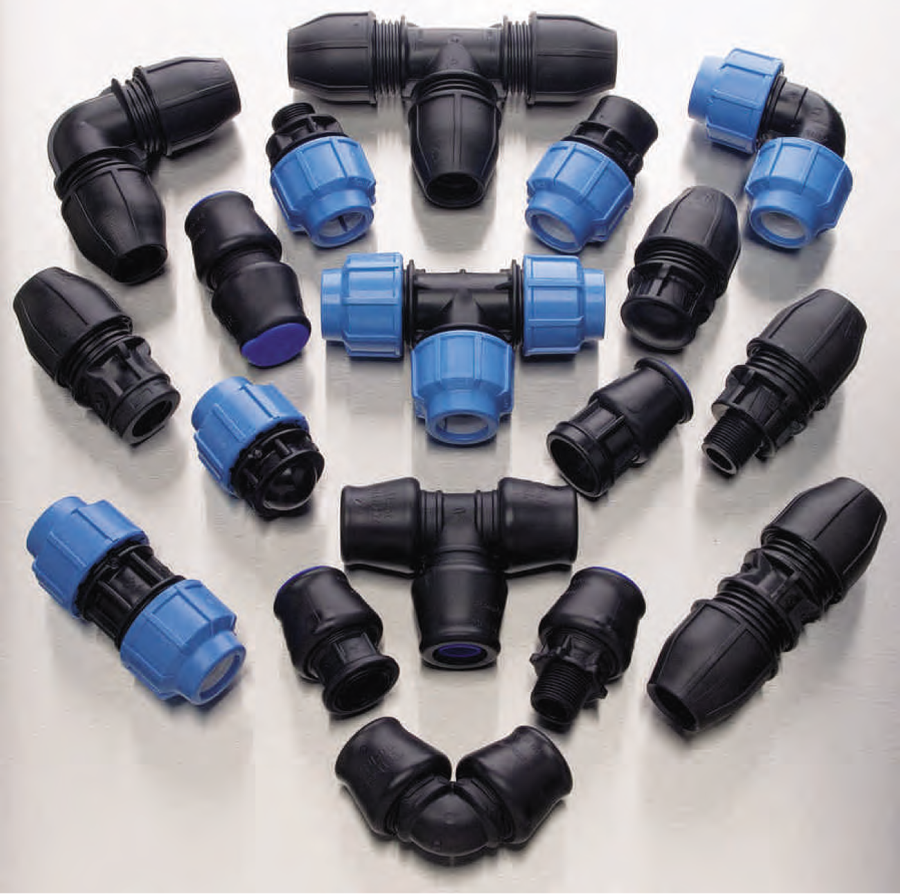

| COMPRESSION FITTING | |
|---|---|
| Product Name | Compression fittings |
| Range | Dia: 20mm OD to 110mm OD |
| Type | Couple, Bend, Tee, Reduce, End Cap, MTA, Flange joint |
| Application | Municipal House Service Connection IHSC), Potable Water Distribution lines, In-Plant piping network, Campus & Real estate townships water distribution network. |
